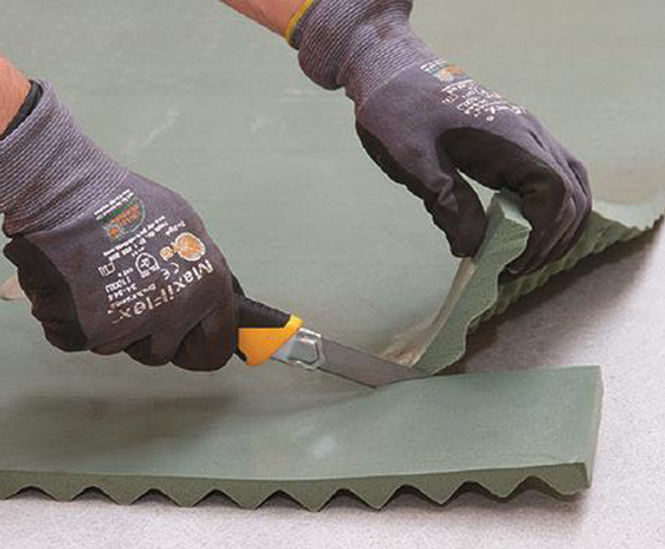

TVS Construction Mat is made from 100% polyruethane and provides impact noise insulation underneath screed flooring.

Applications

Suitable for supermarkets, hotels, fitness studios, hospitals, production halls and warehouses.

Key features

  • Highly effective over the entire load range
  • Low installed height - particularly suitable for refurbishments
  • Quick installation - does not need to be bonded to the sub-floor
  • Easy handling
  • Outstanding performance over lifetime of the building
  • Colour: Olive-green
  • Load range: 2,500kg/m2
  • Thickness:16mm
  • Dyn. rigiditys':≤13 MN/m3(EN29052-1)
  • Compressibilityc(dL-dB):≤2mm (EN 12431)
  • Fire resistance:Class E (EN ISO 11925-2) normal flammable, EN 13501-1
  • Thermal conductivity:0.05 W/mk(EN 12667)
  • Temperature resistance:-30 to 70°C–higher temperatures possible for short periods
  • National technical approval no:Z-23.21-1940
