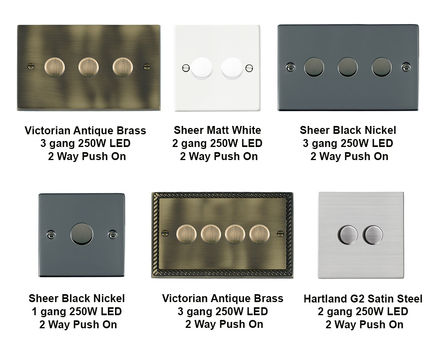

The LEDITB250 dimmer from Hamilton allows the control of up to 250W of mains dimmable LEDs – 2.5 times the capacity of the LEDITB100 dimmer.

LEDITB series 2-way dimming is used for rooms with two entrances / exits. It is compatible with a wide range of LED lamps and luminaires.

LEDITB250, with its greater capacity, is suited to larger spaces with more lighting, or more complex lighting schemes.

Features

  • Controls up to 250W of mains dimmable LEDs

  • 2-way dimming ideal for rooms with two entrances / exits

  • Increased capacity caters for for larger spaces with more lighting, or more complex lighting schemes

  • Compatible with a wide range of LED lamps and luminaires

Personalised lighting control

The soft start up and down feature of the LEDITB series makes lighting control smoother and helps to extend lamp life. The module has settings for minimum dim level and mode setting, enabling the personalisation of lighting control to the preference of the user.

LEDITB modules are supplied pre-set to ‘Trailing Edge’ as standard, but the dimming mode can be manually set for ‘Leading-Edge’ control when necessary, and allows the minimum setting to be adjusted. For circuits containing both leading edge and trailing edge LED’s, the dimming mode can be fine tuned to deliver a smooth operation and maximum performance.

Compatibility with the range

The LEDITB100 and LEDITB250 dimmer modules are compatible with a wide range of Hamilton’s designer plate collections, making them a great option for a co-ordinated interiors scheme.

Built-in thermal circuit protection

The LEDITB250 module comes with built-in thermal circuit protection to prevent overheating.
