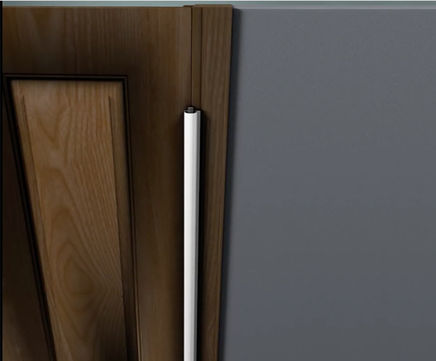

MK1B is a finger trap guard for the hinge pin side of the door. It is one of Fingersafe door safety products and will fit over a standard parliament hinge and can also be adapted for larger openings.

Initially developed for the American government, this model fixes to the door frame and outside edge of the door, forming a protective seal over the hinge. The company can supply special models to cover parliament hinges.

Please note: not all doors require this product. If a door opens onto a wall, MK1B will not be required, as the gap on that side cannot be accessed.

If the hinge side can be accessed, then check that there is a gap wide enough to allow a small finger to be inserted. If not, MK1B will not be needed.

The guard is offered in a range of colours, including blue, cream, caramel, black, yellow, white, red, dark grey, light grey, green and dark brown.

Key features

The Fingersafe® MK1B rearshield finger pinch protector guard for door hinges is installed on the hinge-pin or pull side of the door where the hinge barrels can be seen.
As with all our Fingersafe® products the Fingersafe® MK1B knuckle side hinge guard protects fingers and covers the full length of the door. It is fixed to the door frame and the outside edge of a door.
It will fit over a standard parliament hinge and can also be adapted for larger openings. This product gives full protection preventing pinch injuries from the gap and protruding hinge. Initially developed for the American government to cover parliament hinges.
Available in a variety of colours.
Fingersafe® MK1B can be fitted on exterior or interior doors.
Fingersafe® MK1B can be installed as a sight guard in bathrooms and medical facilities.
Supplied length of 2032mm
Compliant for commercial applications and has a 4 hour fire door rating. It also acts as a draft excluder and smoke inhibitor.
Constructed of high quality PVC (UL V-O rated) with TPE. They have a high impact resistance and are easily cleaned with common household cleaners.
Bim objects Available
A two year warranty is offered on fair wear and tear, supply only. Samples can be supplied on request.

MK1B door safety product for hinge pin side
