Cistern type Concealed cisterns
Flush type Dual
Single
Flush size (litres) 6 / 3

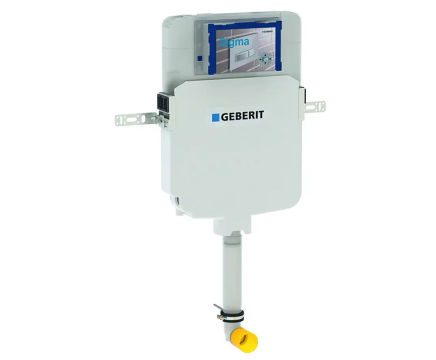

The Geberit Sigma concealed cistern 8cm is designed for concealed installation and for use with back-to-wall, floor-standing WCs.

It has a particularly flat profile and is suited for part-height or room-height installations in thin drywalls.

Characteristics

  • Concealed cistern fully insulated against condensation
  • Front actuation only
  • Protection cover for service opening can be mounted without tools and cut to length
  • Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
  • Connection hose to angle stop valve can be screwed without tools
  • Dual flush with Sigma80 touchless, Sigma60, Sigma50, Sigma20, Sigma10 touchless, Sigma01 or Bolero flush plates
  • Single flush with Sigma10 or Tango flush plates
  • Adjustable flushing volume
  • Water supply connection at the top, offset to the left side
  • Flush bend adjustable, 2cm upwards and 1cm downwards inside cistern housing
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
  • Not compatible with pneumatic or mechanical buttons
  • Installation height 1080mm (can be cut down, depending on the WC pan performance)

Technical data

  • Flow pressure range: 0.1-10 bar
  • Operating temperature water max: 25°C
  • Flush volume factory setting: 5.8 and 3 l
  • Flush volume small: 3 l


The Geberit Sigma concealed cistern 8cm is designed for concealed installation and for use with back-to-wall, floor-standing WCs.

It has a particularly flat profile and is suited for part-height or room-height installations in thin drywalls.

Characteristics

  • Concealed cistern fully insulated against condensation
  • Front actuation only
  • Protection cover for service opening can be mounted without tools and cut to length
  • Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
  • Connection hose to angle stop valve can be screwed without tools
  • Dual flush with Sigma80 touchless, Sigma60, Sigma50, Sigma20, Sigma10 touchless, Sigma01 or Bolero flush plates
  • Single flush with Sigma10 or Tango flush plates
  • Adjustable flushing volume
  • Water supply connection at the top, offset to the left side
  • Flush bend adjustable, 2cm upwards and 1cm downwards inside cistern housing
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
  • Not compatible with pneumatic or mechanical buttons
  • Installation height 1080mm (can be cut down, depending on the WC pan performance)

Technical data

  • Flow pressure range: 0.1-10 bar
  • Operating temperature water max: 25°C
  • Flush volume factory setting: 5.8 and 3 l
  • Flush volume small: 3 l
