Temperature control Thermostatic

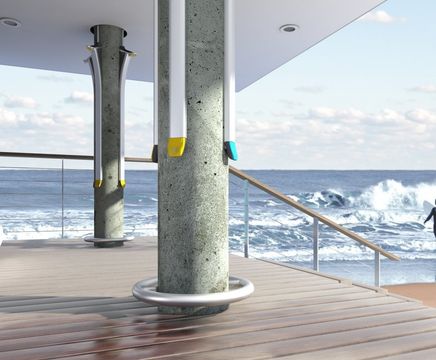

Duso is an integrated shower assembly featuring hydraulically actuated timed-flow control, anodised aluminium column, chromium plated shower head, adjustable spray-plate and flow regulation (8 L/min).

The coloured actuator paddle and spray plate is manufactured in robust and durable injection moulded polymers.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20.

Applications include new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement.

Range

DS-A60A: with TFC paddle and adjustable sprayplate in Aquamarine
DS-A60B: with TFC paddle and adjustable sprayplate in Black
DS-A60G: with TFC paddle and adjustable sprayplate in Grey
DS-A60Y: with TFC paddle and adjustable sprayplate in Yellow

Features

  • Striking and colourful design
  • Robust construction, finish and fittings for extended lifespan
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array
  • Push paddle timed flow control for water and energy conservation: 60+ seconds duration.
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • In-line fine mesh strainer protects timed flow control mechanism from damage by pipe debris
  • Quick and easy to install
  • Requires minimal maintenance
  • Parts and components suitable for recycling after operational lifespan

Please note that the Duso requires a minimum operating pressure of 1 bar dynamic at the shower head.


Duso is an integrated shower assembly featuring hydraulically actuated timed-flow control, anodised aluminium column, chromium plated shower head, adjustable spray-plate and flow regulation (8 L/min).

The coloured actuator paddle and spray plate is manufactured in robust and durable injection moulded polymers.

Multiple shower columns should be supplied with pre-mixed water from a suitably sized Horne TMV such as the Horne 15 or Horne 20.

Applications include new build, refurbishment, retrofit and temporary installations in sport and leisure settings or where water conservation is a key requirement.

Range

DS-A60A: with TFC paddle and adjustable sprayplate in Aquamarine
DS-A60B: with TFC paddle and adjustable sprayplate in Black
DS-A60G: with TFC paddle and adjustable sprayplate in Grey
DS-A60Y: with TFC paddle and adjustable sprayplate in Yellow

Features

  • Striking and colourful design
  • Robust construction, finish and fittings for extended lifespan
  • Vandal resistant shower head with 2 spray positions and easy clean nozzle array
  • Push paddle timed flow control for water and energy conservation: 60+ seconds duration.
  • Integral flow regulator (8 L/min) for water and energy conservation contributes to BREEAM rating
  • In-line fine mesh strainer protects timed flow control mechanism from damage by pipe debris
  • Quick and easy to install
  • Requires minimal maintenance
  • Parts and components suitable for recycling after operational lifespan

Please note that the Duso requires a minimum operating pressure of 1 bar dynamic at the shower head.
