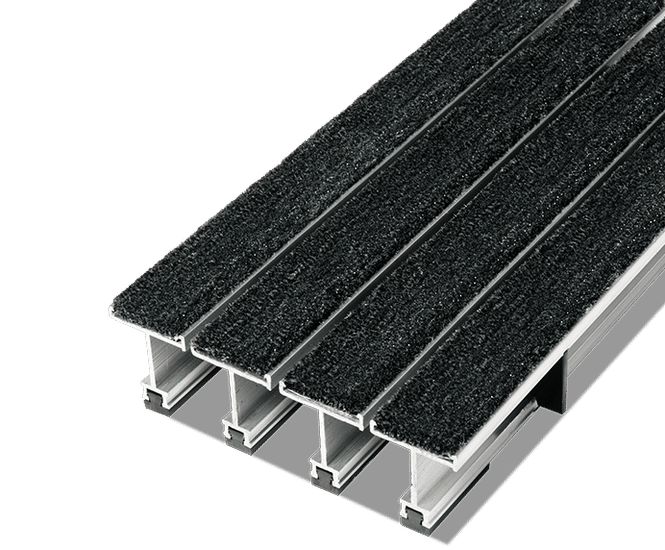

Designed exclusively for recessed installations, CS Pedigrid® is a system of removable grille sections that allows water, dirt, and snow to fall between the heel-proof treads into a drainable 44mm-deep well.

CS Pedigrid® is available in six different tread finishes in a variety of colourways. It is suitable for exterior and interior use and is purpose-made to specific dimensions and shapes for each project.

The system is especially suitable for new construction, on projects where there will be high footfalls, such as passenger termini, shopping centres and hospitals.

Features

  • 44mm deep aluminium grid system.
  • Designed for recess mounting.
  • Offers 85% surface absorption area (when specified with carpet tread inserts) for a very high drying performance.
  • 165kgs/wheel rolling load capability.
  • Open construction and deep matwell for maximum dirt containment and less frequent removal for cleaning.
  • Tread options include interior and exterior-grade carpet inserts, vinyl, EPDM or brush inserts and serrated aluminium.
  • Rails are mill finished as standard.
  • Purpose-made to specific project requirements.
  • Field changeable inserts for low lifecycle costs.
