Frame / panel Frame only
Pre-plumbing Pre-plumbed
Suitability Basins
Frame materials Steel
Frame height (mm) 820 / 980

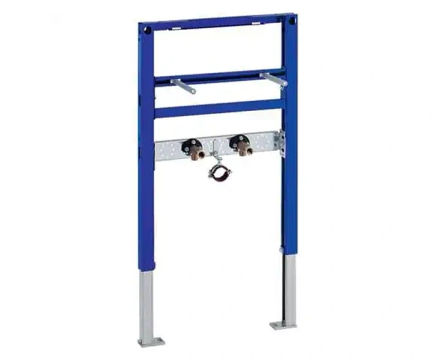

The Geberit Duofix H98/82 is a pre-plumbed wall-hung basin frame for heights between 820 and 980mm.

Application purpose

  • For installation in a partial-height Duofix system wall in front of a solid or drywall construction
  • For installation of a wall-hung washbasin with bolt fixings set at 50-380mm centres (with accessories 111.868.00.1 fastening distance can extend from 380-580mm)
  • For a screed of 0-200mm

Characteristics

  • Frame height 820 / 980mm
  • Frame with holes ø 9mm for fastening in wood frame construction
  • Washbasin fastening distance 50-380mm
  • Galvanised leg supports, steplessly adjustable 0-200mm
  • Self-supporting
  • Frame with C profile 40/40mm
  • Powder-coated frame, ultramarine blue
  • Retractable feet to 5cm
  • Rotating foot plate, for installation in UW50 and UW75 profiles
  • Tap connection plate with adjustable height and depth
  • Fastening for outlet bend, adjustable height
  • With wall brackets to allow up to a 200mm duct. Use extension bolts 111.887.00.1 for larger ducts up to 400mm
  • With backplate elbows and chrome isolating valves with 3/8" BSP connection

Scope of delivery

  • 2 water connections R 1/2"
  • 2 angle stop valves R 1/2"
  • 2 Duofix PreWall brackets for system
  • 2 threaded rods M10 for ceramics fastening
  • Fastening material


The Geberit Duofix H98/82 is a pre-plumbed wall-hung basin frame for heights between 820 and 980mm.

Application purpose

  • For installation in a partial-height Duofix system wall in front of a solid or drywall construction
  • For installation of a wall-hung washbasin with bolt fixings set at 50-380mm centres (with accessories 111.868.00.1 fastening distance can extend from 380-580mm)
  • For a screed of 0-200mm

Characteristics

  • Frame height 820 / 980mm
  • Frame with holes ø 9mm for fastening in wood frame construction
  • Washbasin fastening distance 50-380mm
  • Galvanised leg supports, steplessly adjustable 0-200mm
  • Self-supporting
  • Frame with C profile 40/40mm
  • Powder-coated frame, ultramarine blue
  • Retractable feet to 5cm
  • Rotating foot plate, for installation in UW50 and UW75 profiles
  • Tap connection plate with adjustable height and depth
  • Fastening for outlet bend, adjustable height
  • With wall brackets to allow up to a 200mm duct. Use extension bolts 111.887.00.1 for larger ducts up to 400mm
  • With backplate elbows and chrome isolating valves with 3/8" BSP connection

Scope of delivery

  • 2 water connections R 1/2"
  • 2 angle stop valves R 1/2"
  • 2 Duofix PreWall brackets for system
  • 2 threaded rods M10 for ceramics fastening
  • Fastening material
