System Tracks / rails
Applications Cubicles
Suitability Healthcare
Residential
Material Aluminium
Fixing Ceiling mounted
Wall mounted
Accessories Brackets

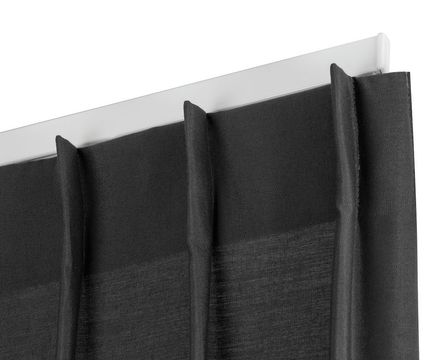

G-Rail 2200 is suitable for medium-weight curtains and can be mounted to most fixing surfaces. Offering a variety of mounting brackets, this rail provides many practical fixing solutions and can be curved to a minimum radius of 10cm.

Colours: White RAL 9010, natural, brown, gold.

Finishes: satin silver anodised or powder coated in accordance with the Qualicoat standard. Special colours are available on request.

Material: aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615.

Profile weight: 174g/m.

Accessories: gliders 2010 at 16 per metre with two end-stops and two end covers per length.

Installation: face fixing with nylon bracket. Ceiling fixing with nylon bracket, screwed to timber or plugged and screwed to blockwork.

Bending: minimum radius 10cm, using bending machine.


G-Rail 2200 is suitable for medium-weight curtains and can be mounted to most fixing surfaces. Offering a variety of mounting brackets, this rail provides many practical fixing solutions and can be curved to a minimum radius of 10cm.

Colours: White RAL 9010, natural, brown, gold.

Finishes: satin silver anodised or powder coated in accordance with the Qualicoat standard. Special colours are available on request.

Material: aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615.

Profile weight: 174g/m.

Accessories: gliders 2010 at 16 per metre with two end-stops and two end covers per length.

Installation: face fixing with nylon bracket. Ceiling fixing with nylon bracket, screwed to timber or plugged and screwed to blockwork.

Bending: minimum radius 10cm, using bending machine.
