System Tracks / rails
Applications Showers
Suitability Commercial
Custodial
Healthcare
Residential
Material Aluminium
Fixing Ceiling mounted
Wall mounted
Accessories Anti-ligature fixings
Brackets
Hooks

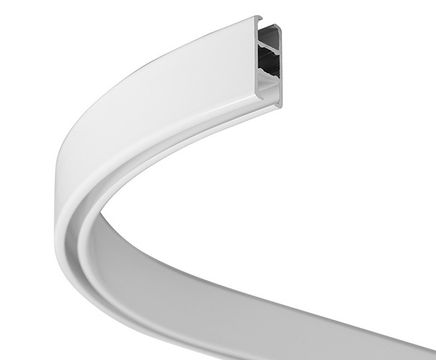

G-Rail aluminium shower rail profiles 4100 is supplied with water-resistant fittings as standard. G-Rail shower rails are manufactured in continuous lengths to suit all over-bath and shower-room applications.

Standard colours:
White RAL 9010, natural, powder coated in accordance with the Qualicoat standard, or natural silver anodised in accordance with the Qualanod standard. Special colours are available on request.

Material:
Aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615. Profile weight: 394g/m.

Accessories:
Glider-hook 4008 supplied at 10 per metre. Number of glider-hooks 4008 at standard curtain width of 120cm: eight pieces; at 180cm 12 pieces and at 240cm curtain width 16 pieces. Two end stops 4002 per length, dust cover 4145.

Installation:
Ceiling fixing with suspension hanger 4155 or 4255, mini suspension hanger 4254, or direct ceiling fixing with plate 4135. Face fixing with wall bracket 4141 or end fixing with support 4150.

Bending: minimum radius 20cm. Bending machine 1015.


G-Rail aluminium shower rail profiles 4100 is supplied with water-resistant fittings as standard. G-Rail shower rails are manufactured in continuous lengths to suit all over-bath and shower-room applications.

Standard colours:
White RAL 9010, natural, powder coated in accordance with the Qualicoat standard, or natural silver anodised in accordance with the Qualanod standard. Special colours are available on request.

Material:
Aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615. Profile weight: 394g/m.

Accessories:
Glider-hook 4008 supplied at 10 per metre. Number of glider-hooks 4008 at standard curtain width of 120cm: eight pieces; at 180cm 12 pieces and at 240cm curtain width 16 pieces. Two end stops 4002 per length, dust cover 4145.

Installation:
Ceiling fixing with suspension hanger 4155 or 4255, mini suspension hanger 4254, or direct ceiling fixing with plate 4135. Face fixing with wall bracket 4141 or end fixing with support 4150.

Bending: minimum radius 20cm. Bending machine 1015.
