System Tracks / rails
Applications Windows
Suitability Residential
Material Aluminium
Fixing Ceiling mounted
Accessories Hooks
Rings

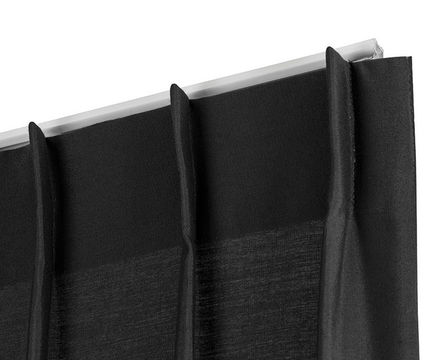

Specially designed for recessing into timber, profile 4900 provides a clear visual aspect. This discreet profile is secured into place using special Torx head screws. Multi-tracks can be recessed to enhance sheer and dress curtain arrangements.

Material:
Aluminium 606035-T6-F22. (Higher specification than DIN 1725).
Shape and size tolerances are in accordance with DIN 17615.
Profile weight: 97 g/m.

Finishes:
White RAL 9010 powder coated in accordance with the Qualicoat standard. Special colours on request.

Accessories:
Gliders 4010 at 10-16 per metre with two end stops 4001 and one spring stop 4003 per length.

Installation:
Ceiling fixing with Torx screw 2413; 2.5mm diameter pre-punched holes at 15cm centres.

Bending:
Minimum radius 10 cm. Bending machine 1012 or 1015.


Specially designed for recessing into timber, profile 4900 provides a clear visual aspect. This discreet profile is secured into place using special Torx head screws. Multi-tracks can be recessed to enhance sheer and dress curtain arrangements.

Material:
Aluminium 606035-T6-F22. (Higher specification than DIN 1725).
Shape and size tolerances are in accordance with DIN 17615.
Profile weight: 97 g/m.

Finishes:
White RAL 9010 powder coated in accordance with the Qualicoat standard. Special colours on request.

Accessories:
Gliders 4010 at 10-16 per metre with two end stops 4001 and one spring stop 4003 per length.

Installation:
Ceiling fixing with Torx screw 2413; 2.5mm diameter pre-punched holes at 15cm centres.

Bending:
Minimum radius 10 cm. Bending machine 1012 or 1015.
