System Tracks / rails
Applications Bay windows
Windows
Suitability Commercial
Residential
Material Aluminium
Fixing Ceiling mounted
Wall mounted
Accessories Brackets
Hooks
Rings

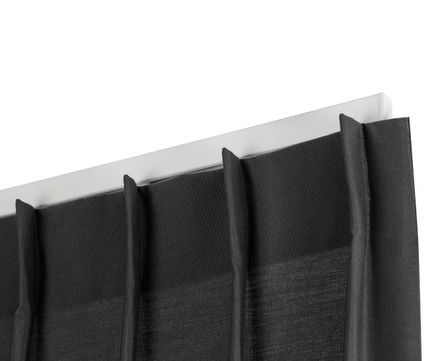

Profile 4800 is a sturdy profile, suitable for light to medium-heavy curtains. It features the optional use of gliders or rollers.

The strength of this profile allows a greater distance between fixing bracket centres. This is beneficial when using special clips to fix to a suspended ceiling grid where standard-width ceiling tiles have to be bridged.

Material:
Aluminium 606035-T6-F22. (Higher specification than DIN 1725).
Shape and size tolerances are in accordance with DIN 17615.
Profile weight: 231g/m.

Finishes:
White RAL 9010 powder coated in accordance with the Qualicoat standard. Special colours on request.

Accessories:
Gliders 4010 at 10-16 per metre with two end stops 4001 per length.

Installation:
Ceiling fixing with synthetic bracket 5350 or with double bracket
2216-53 in combination with ceiling bracket 5350. Face fixing with synthetic wall bracket 5351. Extension brackets 2015, 2018 and 2019 can be used in combination with ceiling bracket 5350.

Bending:
Minimum radius 10cm. Bending machine 1015.


Profile 4800 is a sturdy profile, suitable for light to medium-heavy curtains. It features the optional use of gliders or rollers.

The strength of this profile allows a greater distance between fixing bracket centres. This is beneficial when using special clips to fix to a suspended ceiling grid where standard-width ceiling tiles have to be bridged.

Material:
Aluminium 606035-T6-F22. (Higher specification than DIN 1725).
Shape and size tolerances are in accordance with DIN 17615.
Profile weight: 231g/m.

Finishes:
White RAL 9010 powder coated in accordance with the Qualicoat standard. Special colours on request.

Accessories:
Gliders 4010 at 10-16 per metre with two end stops 4001 per length.

Installation:
Ceiling fixing with synthetic bracket 5350 or with double bracket
2216-53 in combination with ceiling bracket 5350. Face fixing with synthetic wall bracket 5351. Extension brackets 2015, 2018 and 2019 can be used in combination with ceiling bracket 5350.

Bending:
Minimum radius 10cm. Bending machine 1015.
