System Tracks / rails
Applications Cubicles
Suitability Healthcare
Material Aluminium
Fixing Ceiling mounted
Wall mounted
Accessories Anti-ligature fixings
Brackets
Hooks

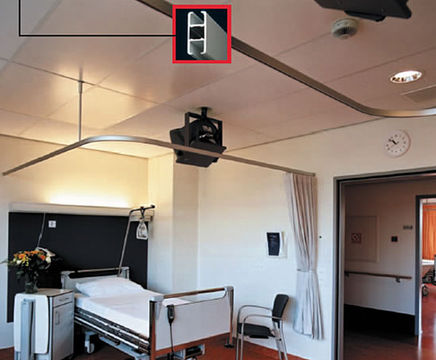

G-Rail 4100 is a cubicle rail for room dividing and privacy in the healthcare sector. It is a strong, functional and fully reversible profile.

Conforming to HTM66, series 4100 offers a comprehensive range of accessories to suit all fixing possibilities. Elegant in design and function, 4100 is suitable for use with up-lighters for improved ambient hospital ward lighting.

Synthetic wall and ceiling fittings allow rail 4100 to comply with the European NEN-3134 standard for special care rooms requiring an anti-static facility.

This system can also be mounted with anti-ligature load-release components, to provide a controlled system collapse.

Bending radius: 20cm, 30cm or greater than 1m. Bending machine 1015.

Material: aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615. Profile weight: 394g/m.

Finish: satin silver anodised in accordance with the Qualanod standard. Powder coat white RAL 9010 in accordance with the Qualicoat standard.

Accessories:
Glider-hooks 4008 (rotating glider with SS hook) at 10 per metre, two end stops 4002 per length. Dust cover 4145 and connecting bridge 4165 to suit.G-Rail 4100 is a cubicle rail for room dividing and privacy in the healthcare sector. It is a strong, functional and fully reversible profile.

Conforming to HTM66, series 4100 offers a comprehensive range of accessories to suit all fixing possibilities. Elegant in design and function, 4100 is suitable for use with up-lighters for improved ambient hospital ward lighting.

Synthetic wall and ceiling fittings allow rail 4100 to comply with the European NEN-3134 standard for special care rooms requiring an anti-static facility.

This system can also be mounted with anti-ligature load-release components, to provide a controlled system collapse.

Bending radius: 20cm, 30cm or greater than 1m. Bending machine 1015.

Material: aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615. Profile weight: 394g/m.

Finish: satin silver anodised in accordance with the Qualanod standard. Powder coat white RAL 9010 in accordance with the Qualicoat standard.

Accessories:
Glider-hooks 4008 (rotating glider with SS hook) at 10 per metre, two end stops 4002 per length. Dust cover 4145 and connecting bridge 4165 to suit.


G-Rail 4100 is a cubicle rail for room dividing and privacy in the healthcare sector. It is a strong, functional and fully reversible profile.

Conforming to HTM66, series 4100 offers a comprehensive range of accessories to suit all fixing possibilities. Elegant in design and function, 4100 is suitable for use with up-lighters for improved ambient hospital ward lighting.

Synthetic wall and ceiling fittings allow rail 4100 to comply with the European NEN-3134 standard for special care rooms requiring an anti-static facility.

This system can also be mounted with anti-ligature load-release components, to provide a controlled system collapse.

Bending radius: 20cm, 30cm or greater than 1m. Bending machine 1015.

Material: aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615. Profile weight: 394g/m.

Finish: satin silver anodised in accordance with the Qualanod standard. Powder coat white RAL 9010 in accordance with the Qualicoat standard.

Accessories:
Glider-hooks 4008 (rotating glider with SS hook) at 10 per metre, two end stops 4002 per length. Dust cover 4145 and connecting bridge 4165 to suit.G-Rail 4100 is a cubicle rail for room dividing and privacy in the healthcare sector. It is a strong, functional and fully reversible profile.

Conforming to HTM66, series 4100 offers a comprehensive range of accessories to suit all fixing possibilities. Elegant in design and function, 4100 is suitable for use with up-lighters for improved ambient hospital ward lighting.

Synthetic wall and ceiling fittings allow rail 4100 to comply with the European NEN-3134 standard for special care rooms requiring an anti-static facility.

This system can also be mounted with anti-ligature load-release components, to provide a controlled system collapse.

Bending radius: 20cm, 30cm or greater than 1m. Bending machine 1015.

Material: aluminium 606035-T6-F22. (Higher specification than DIN 1725). Shape and size tolerances are in accordance with DIN 17615. Profile weight: 394g/m.

Finish: satin silver anodised in accordance with the Qualanod standard. Powder coat white RAL 9010 in accordance with the Qualicoat standard.

Accessories:
Glider-hooks 4008 (rotating glider with SS hook) at 10 per metre, two end stops 4002 per length. Dust cover 4145 and connecting bridge 4165 to suit.
